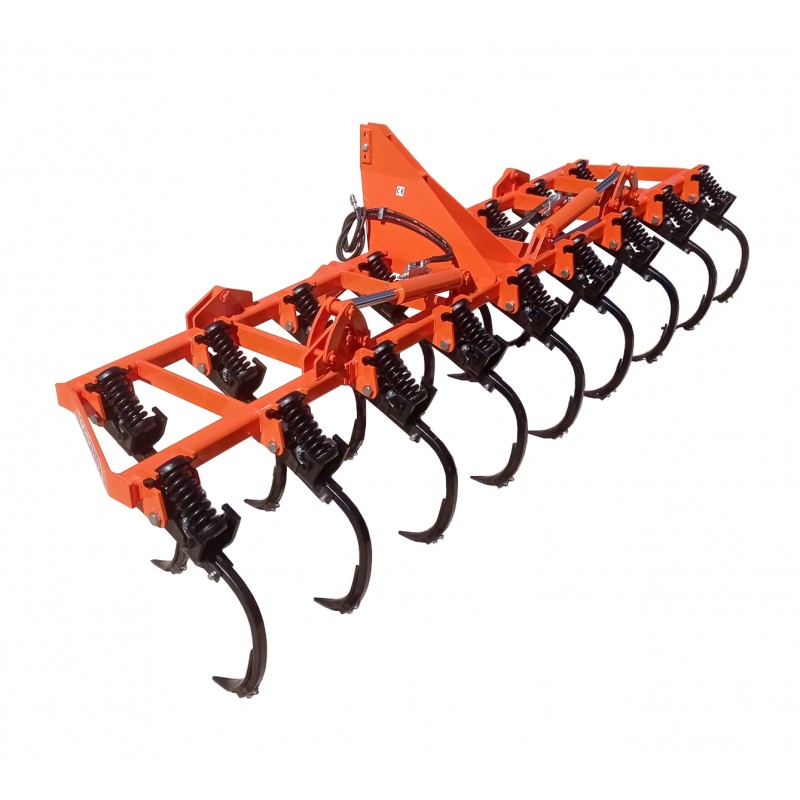

Chisel Cultivator Model CH-C
Cultivator Chisel Model CH-C.

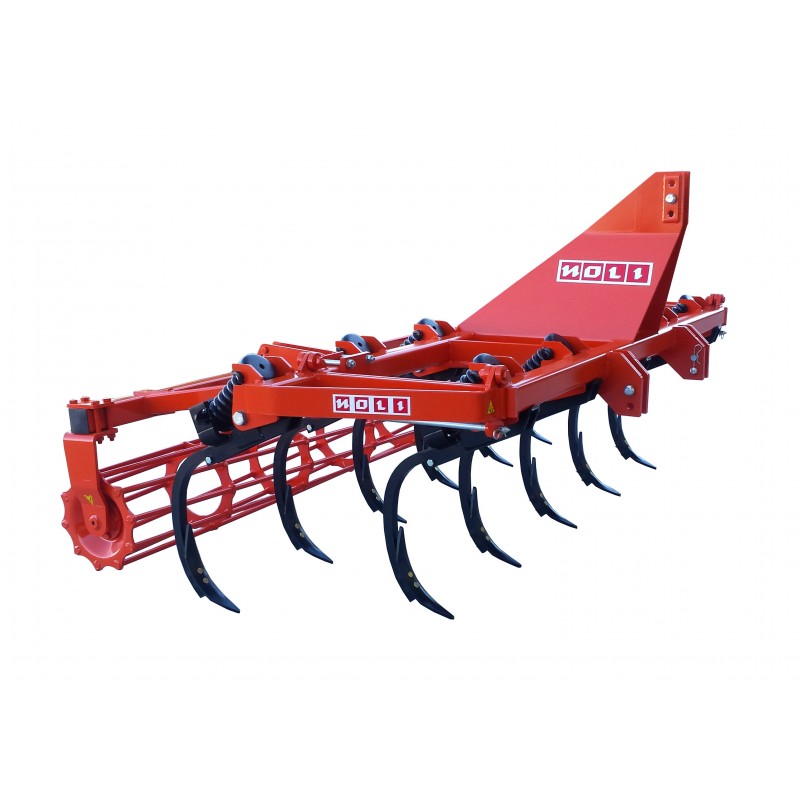

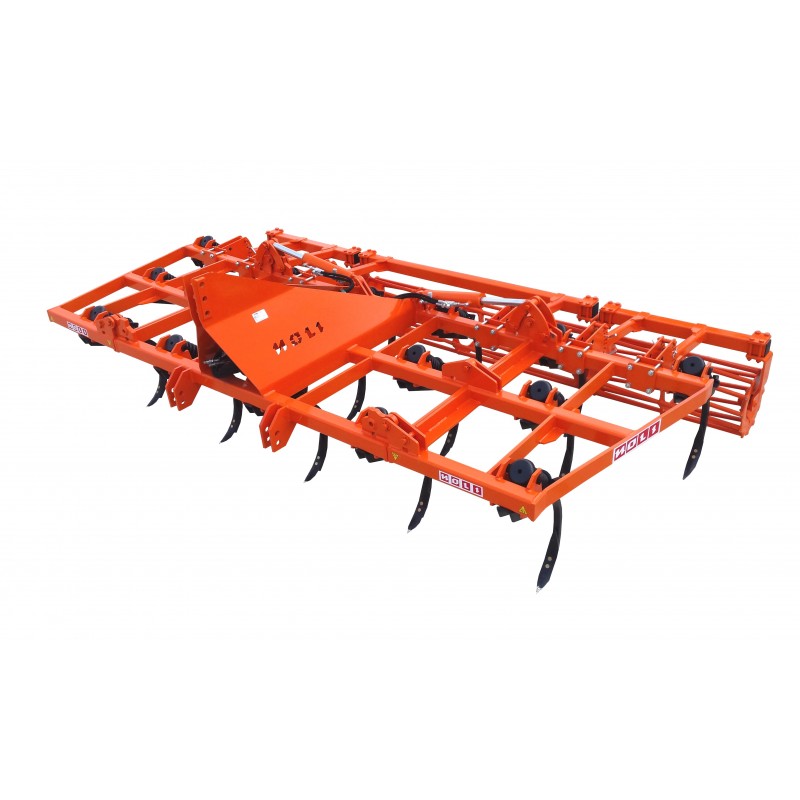

Cultivator Chisel Model CH-C, manufactured in structural tube 100x100, equipped with steel arms treaty 40x40, springs round of 22 mm with inner spring, provided with screw fuse to protect the arm and the spring, control wheels depth mounted on bearings.
They are available in two and three rows of arms.
Optionally folding system hydraulic, harrow springs, roll bars, etc ...
| Núm.Arms | Work Width | Profundity Cms. | Approx. Weight | Minimum Power CV |
| 5 | 1.450 mm. | 30 - 35 | 472 | 80 - 90 |
| 7 | 2.050 mm. | 30 - 35 | 620 | 90 - 100 |
| 9 | 2.650 mm. | 30 - 35 | 710 | 110 - 120 |
| 9-11 | 3.250 mm. | 30 - 35 | 916 | 120 - 130 |
| 9-13 | 3.850 mm. | 30 - 35 | 1.065 | 140 - 160 |
| 9-15 | 4.450 mm. | 30 - 35 | 1.260 | 170 - 180 |
| 9-17 | 5.050 mm. | 30 - 35 | 1.440 | 180 - 200 |
| 11-19 | 5.650 mm. | 30 - 35 | 1.620 | 220 - 240 |
| 11-21 | 6.250 mm. | 30 - 35 | 1.800 | 250 - 270 |
| 11-23 | 6.850 mm. | 30 - 35 | 2.100 | 280 - 330 |
| 11-25 | 7.450 mm. | 30 - 35 | 2.310 | 360 - 400 |
Optionally models arms 7 and 9, can be fabricated into mechanical folding chassis.
From 17 arms equipped with control valves and hydraulic locking cylinders series.
From 19 arms, equipped with four-wheel profundiddad serial control.
The measures and weights indicated in the table are approximate, depend on the configuration options and Cultivator.

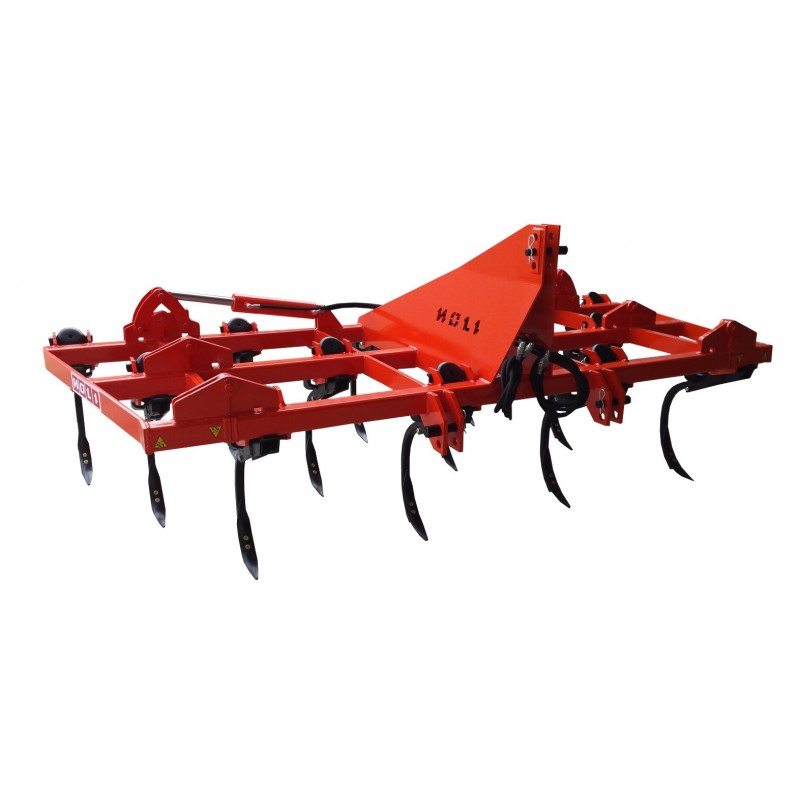

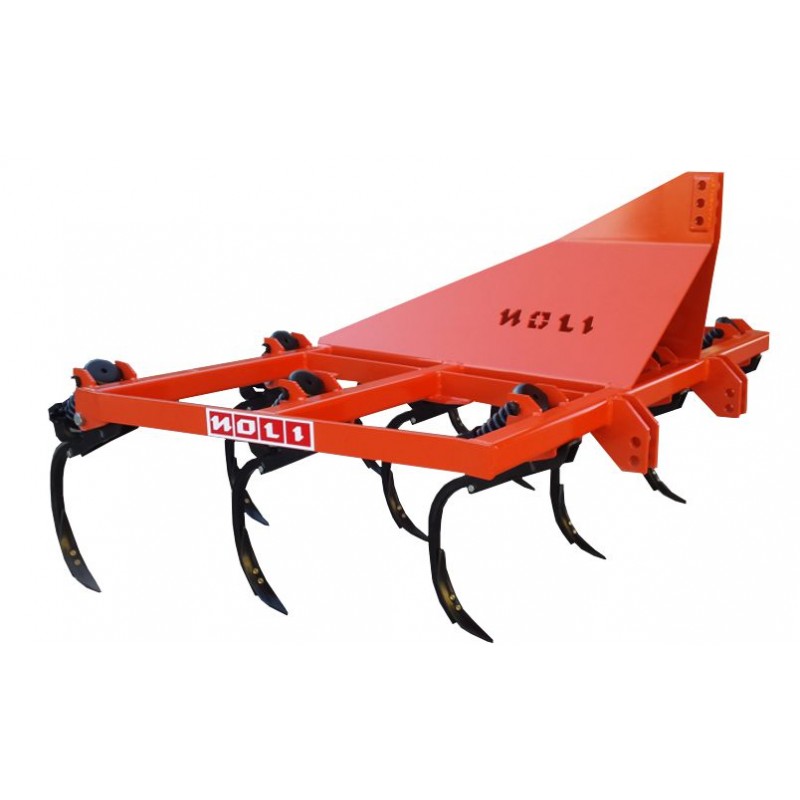

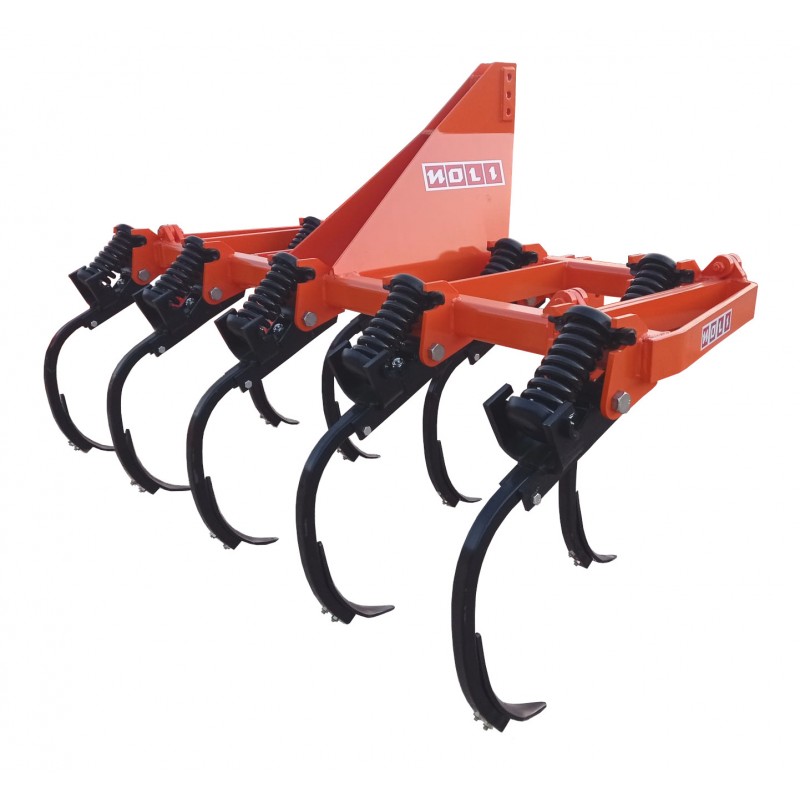

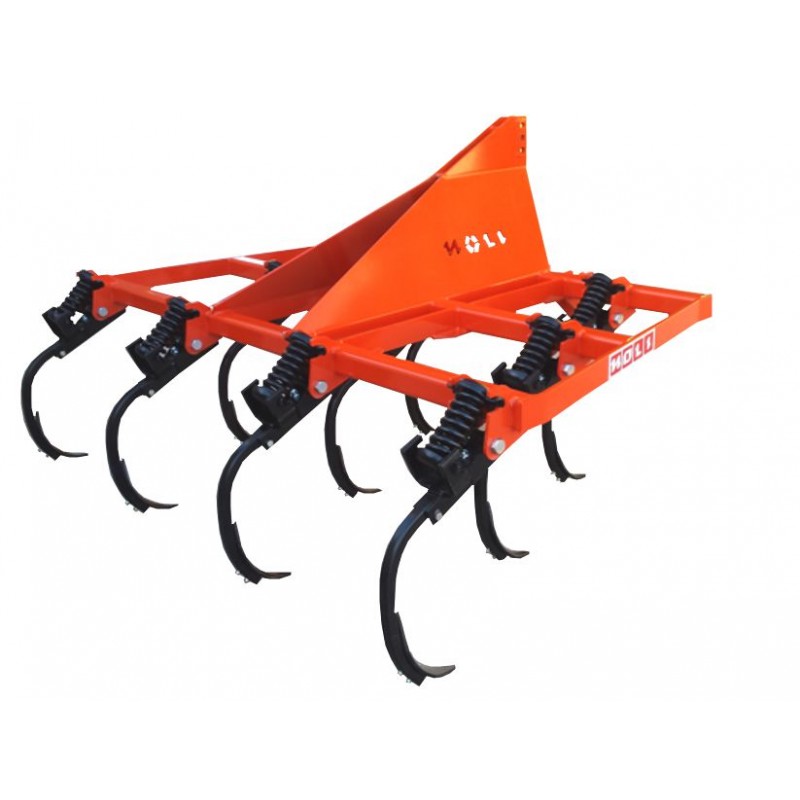

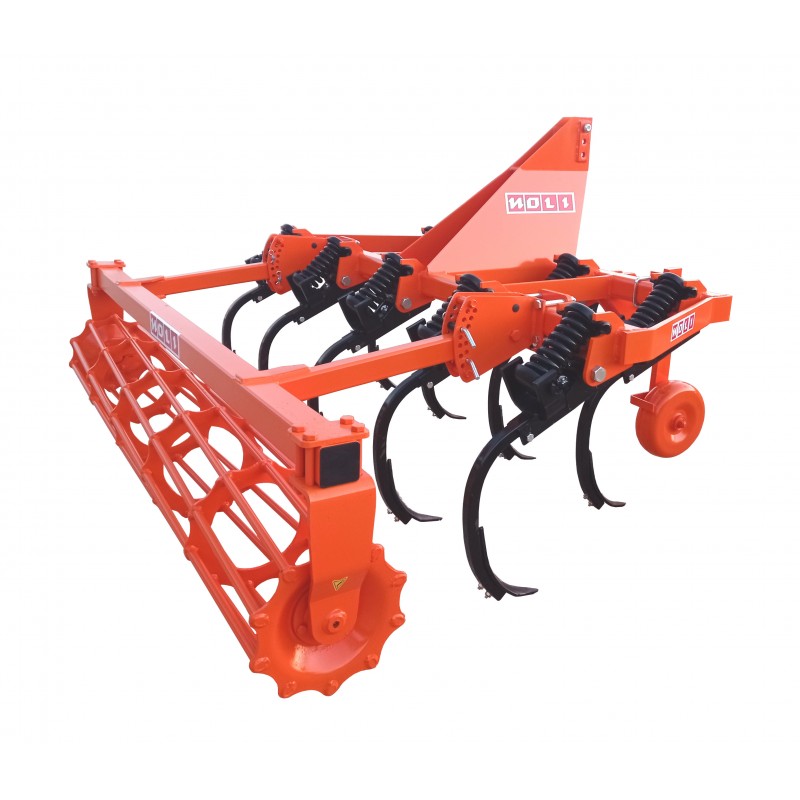

The Cultivator Chisel Model CH-C of 5-9 arms, chassis manufactured in square steel tube 100x100, fixed, fitted with wheels depth control standard. Optionally available mechanical folding system.

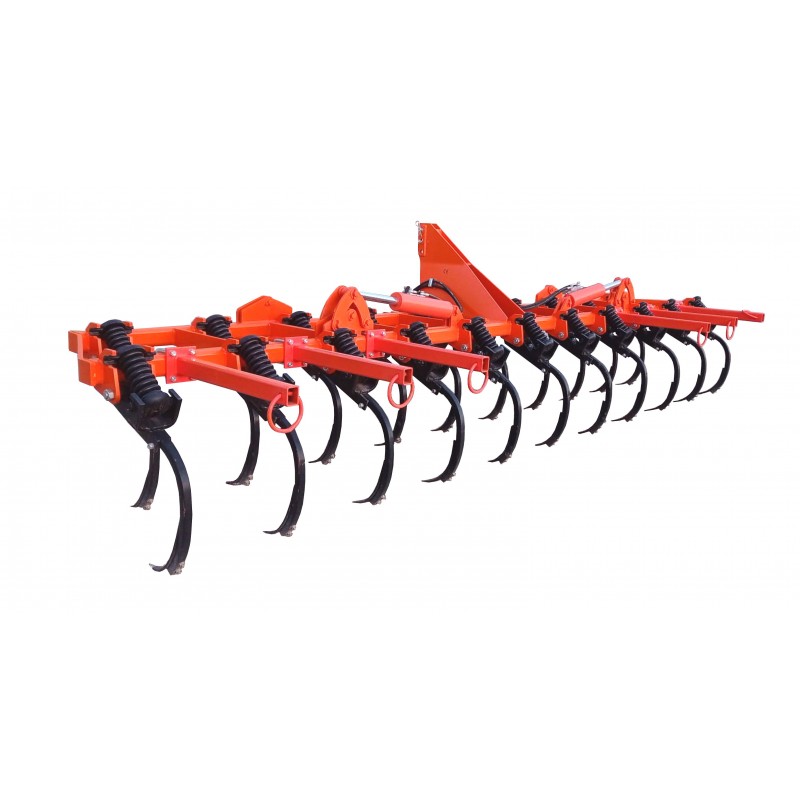

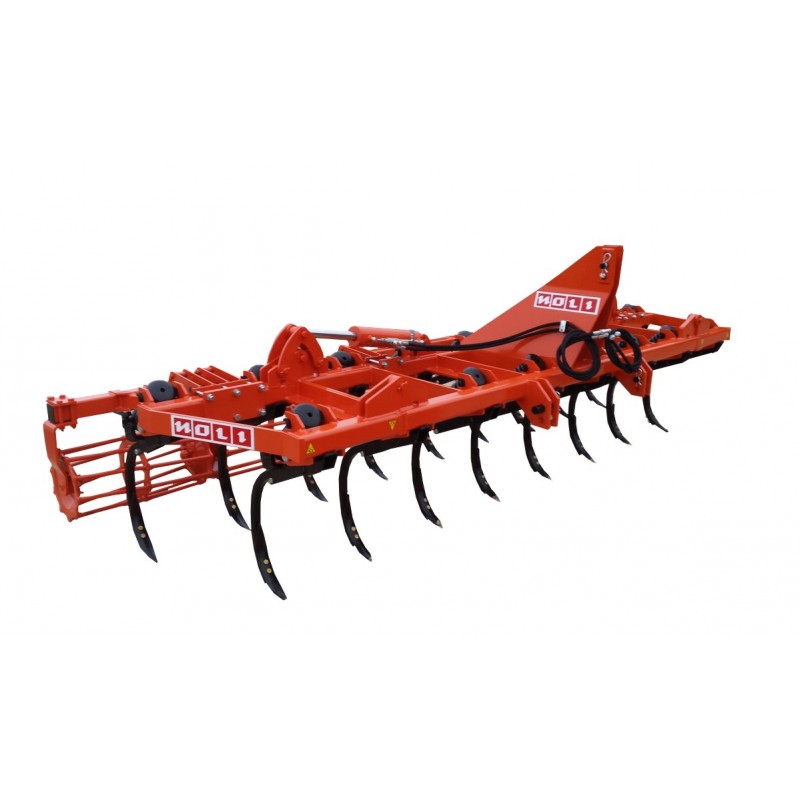

Models from 11-17 arms, chassis manufactured in square steel tube 100x100, mechanical folding, with wheels depth control standard. Optionally has hydraulic swing system.

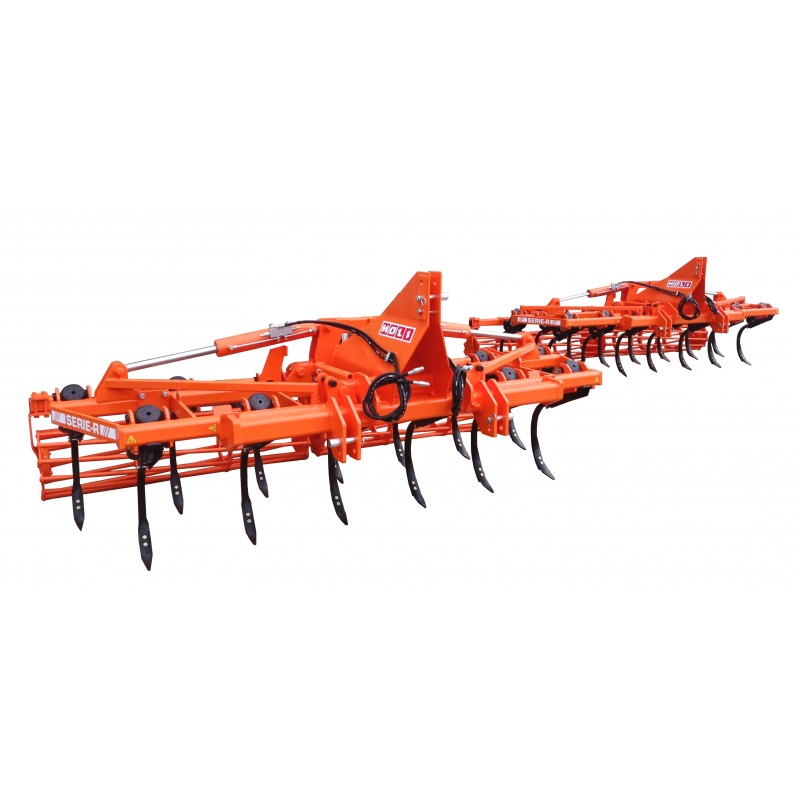

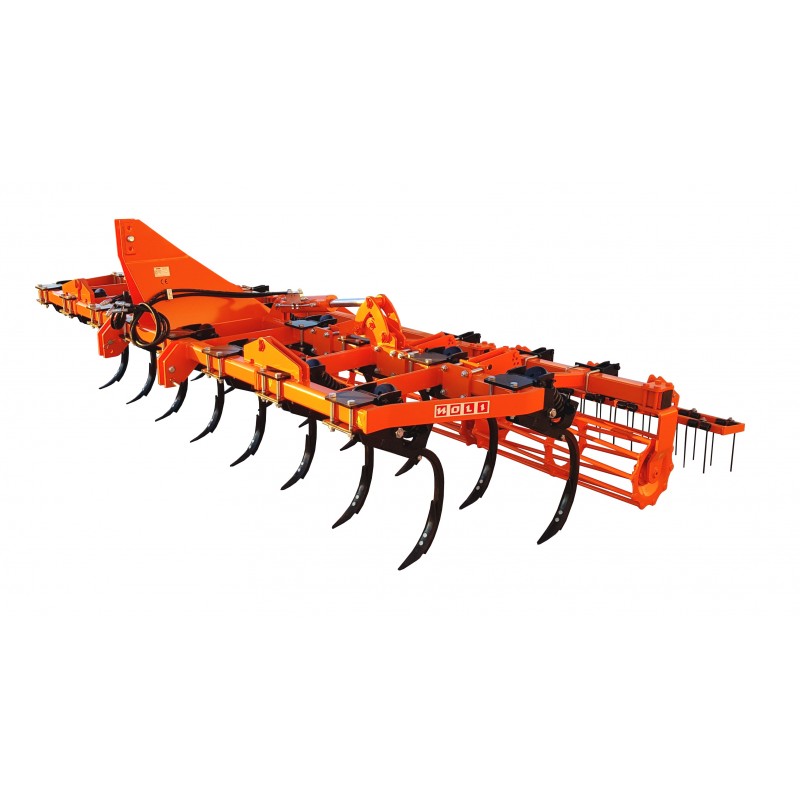

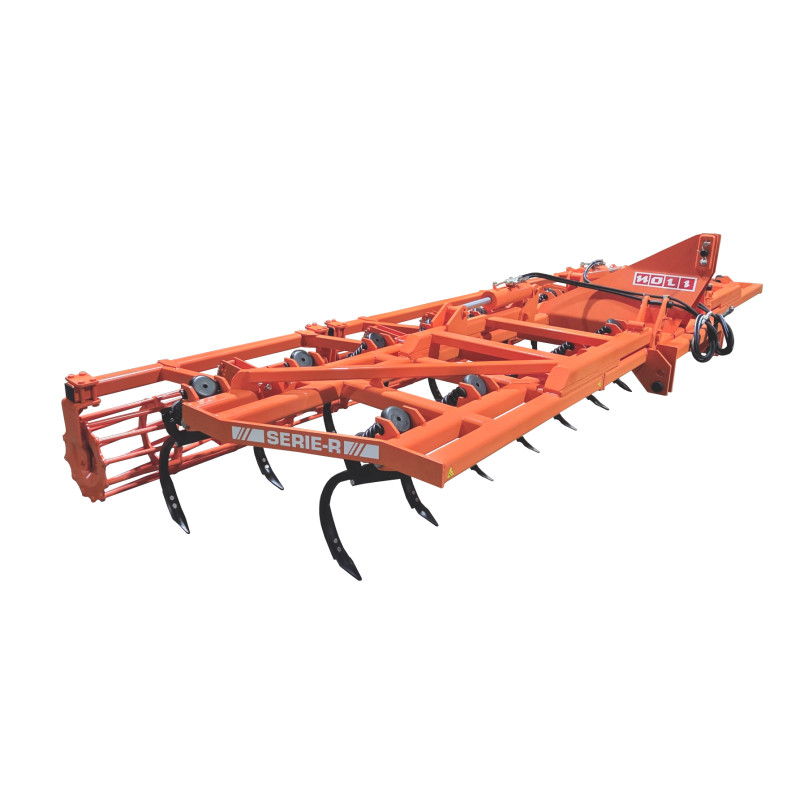

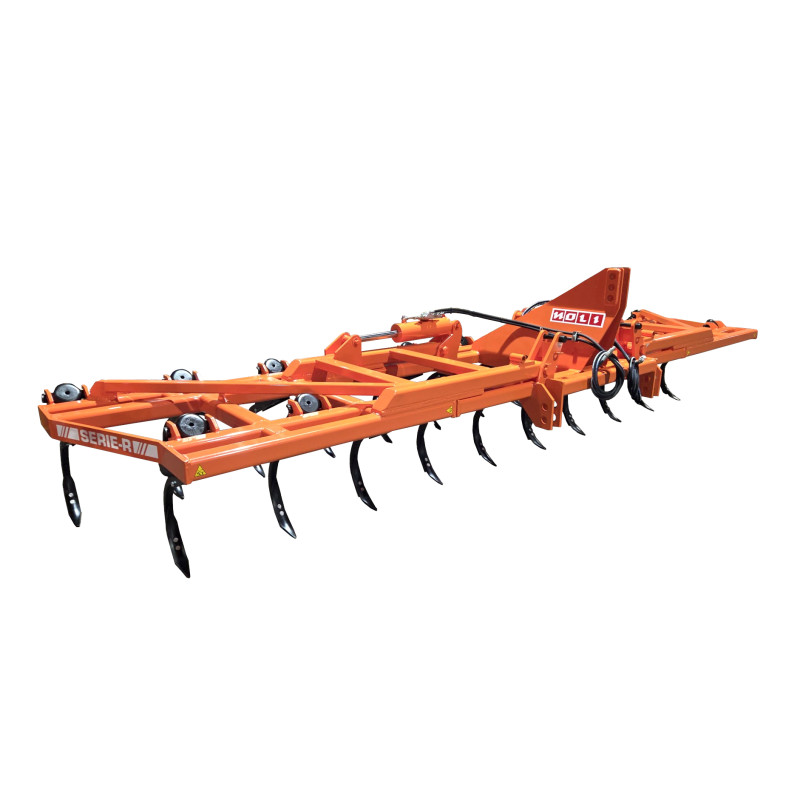

Models from 19-25 arms, chassis manufactured in square steel tube of 100x100, hydraulic folding Standard and depth control wheels.
They are constructed in two or three rows of arms.

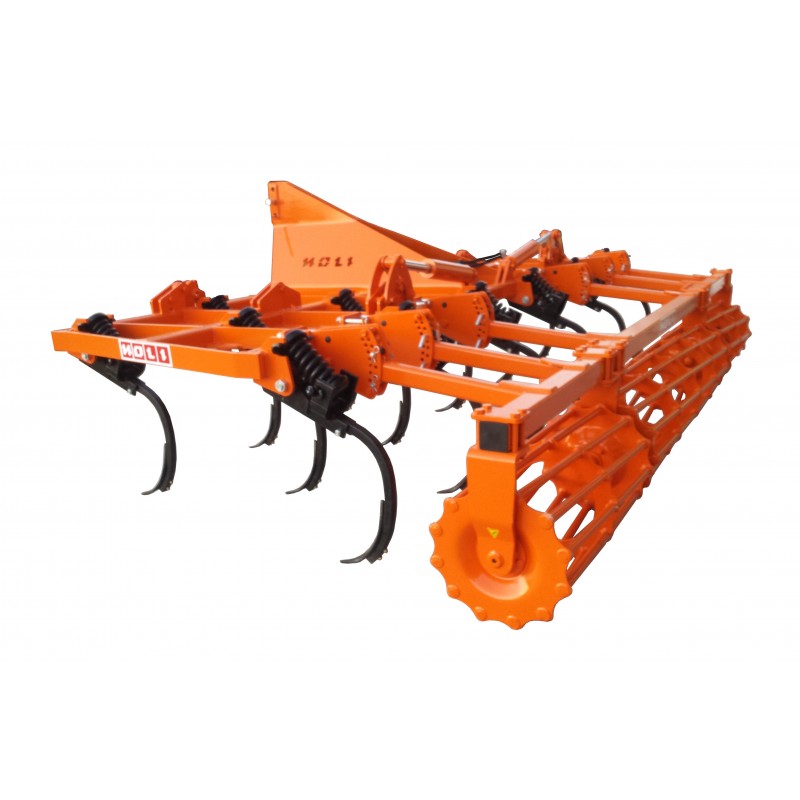

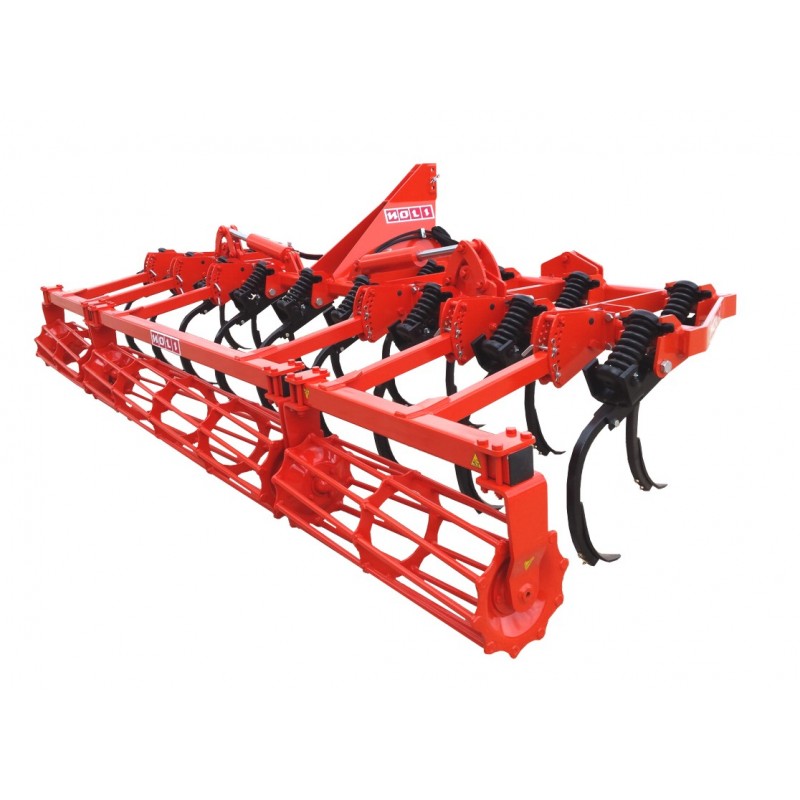

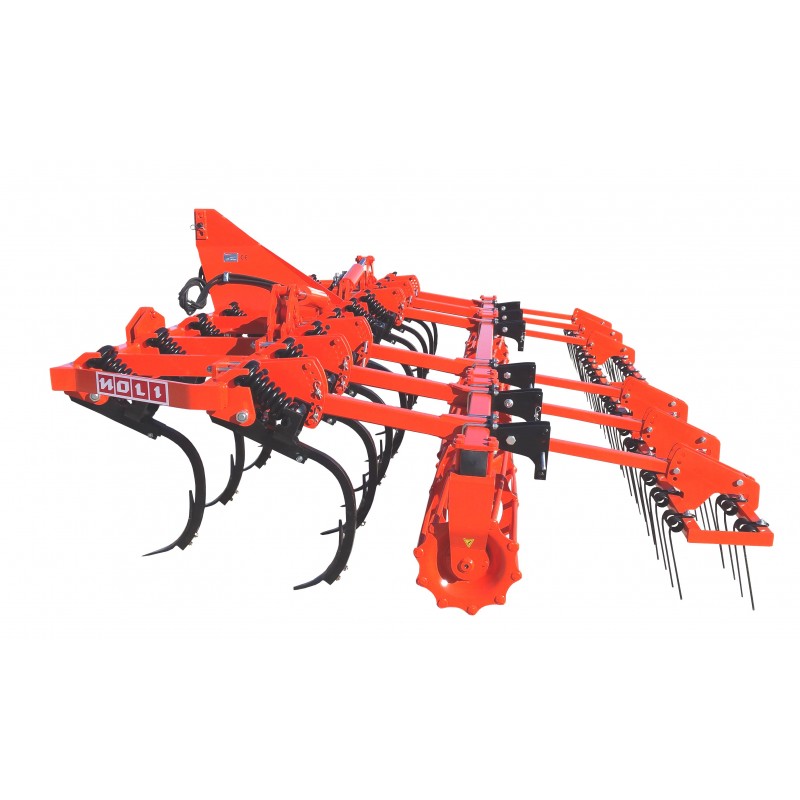

All models can optionally be equipped with quick coupler, spring rake, roll bars, etc ...
