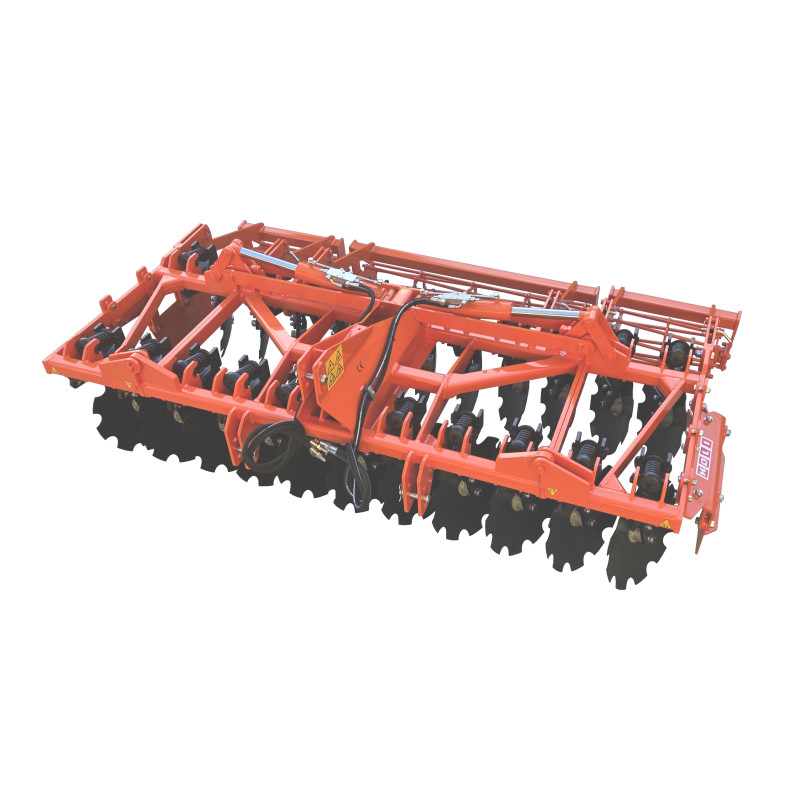

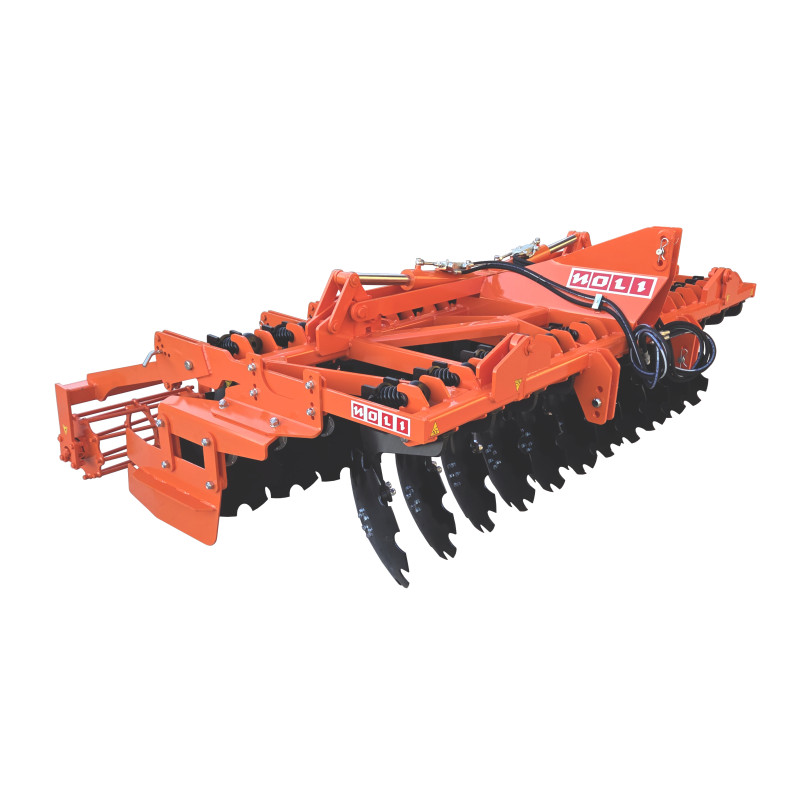

Harrow Model GRL

The GRL Model Harrow, has been specially designed to carry out work in Olivar or Almond trees in intensive or superintensive plantations.

Technical data

Harrow Model GRL, is manufactured in 80x80 square steel tube chassis, having this 3 position hitch.

This Harrow Model is equipped with 22" discs and its articulation system mounts 14 mm round springs.

As standard, it is equipped with Raederas, side deflectors and 330 mm roller. in diameter and 9 round bars of 20 mm.

Optionally it can be equipped with a 420 mm roller. of diameter and round bars of 25 mm.

Technical data
Núm. Disc Working Width Outer Width Chassis Aprox. Weigth Kgrs. Minimun Power CV
10 1.400 mm. 1.750 mm. Fijo 800 50 - 60
12 1.675 mm. 2.025 mm. Fijo 955 60 - 70
14 1.950 mm. 2.300 mm. Fijo 1.116 70 - 80
18 2.500 mm. 2.850 mm. Fijo 1.435 80 - 90
22 3.000 mm. 3.350 mm. Fijo 1.750 90 - 110

The measurements and weights indicated in the table, are indicative, will depend on the options and configuration of the Harrow.
