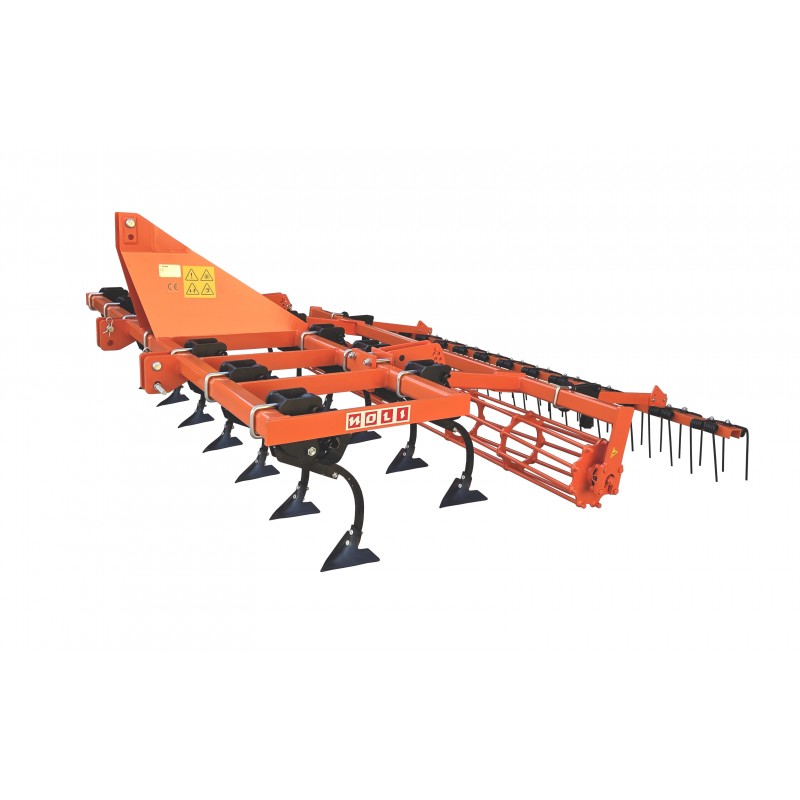

Vibrocultor Model VCG
Vibrocultor Model VCG.
Vibrocultor Model VCG, square 25 mm. arms. Depth-control wheels.
Chassis of square steel tube 80x80.
Compresion spring of 14 mm., mounted on two or three rows of arms.
Mechanical or hidraulyc folding system. Manufactured with ploughing widths of 1.5 Mtrs. up to 9 Mtrs.
Fitted with sprin rake as optional extra.
Features Vibrocultor Model VCG 2 lines
| Núm.Arms | Width Work | Profundity Cms. | Weight Aprox. Kgrs. | Minimum Power CV |
| 7 | 1.520 mm. | 5 - 15 | 280 | 40 - 45 |
| 9 | 1.960 mm. | 5 - 15 | 380 | 45 - 50 |
| 11 | 2.400 mm. | 5 - 15 | 430 | 50 - 60 |
| 13 | 2.840 mm. | 5 - 15 | 480 | 60 - 70 |
| 15 | 3.300 mm. | 5 - 15 | 600 | 70 - 80 |
| 17 | 3.740 mm. | 5 - 15 | 645 | 80 - 90 |
| 19 | 4.180 mm. | 5 - 15 | 830 | 90 - 100 |
| 21 | 4.620 mm. | 5 - 15 | 950 | 100 - 105 |
| 23 | 5.060 mm. | 5 - 15 | 1.070 | 105 - 110 |
Features Vibrocultor Model VCG 3 lines
| Núm.Arms | Width Work | Profundity Cms. | Weight Aprox. Kgrs. | Minimum Power CV |
| 13 | 2.600 mm. | 5 - 15 | 588 | 60 - 70 |
| 16 | 3.200 mm. | 5 - 15 | 775 | 70 - 80 |
| 19 | 3.800 mm. | 5 - 15 | 964 | 80 - 90 |
| 22 | 4.400 mm. | 5 - 15 | 1.150 | 90 - 100 |
| 25 | 5.000 mm. | 5 - 15 | 1.235 | 100 - 110 |
| 28 | 5.600 mm. | 5 - 15 | 1.320 | 110 - 130 |
| 31 | 6.200 mm. | 5 - 15 | 1.410 | 130 - 150 |
The measures and weights indicated in the table are approximate, depend on the configuration options and Vibrocultor.
The Vibrocultor Model VCG, is provided with arms of steel square 25 mm., 14 mm springs., chassis square steel tube 80x80, mounted on two or three rows of arms and depth control wheels as standard.
From 3 mtrs., equipped with mechanical folding system series.
Optionally it can be equipped with hydraulic folding system, dredge angular chassis spring springs 7 mm. or 9 mm. or drag with tubular chassis and springs 50x50 9 mm.
