Vibrator Model VBFHCA

Set Multidirectional vibrator Model VBFHCA

Description
Downloads
Technical data
Product allocation
Description

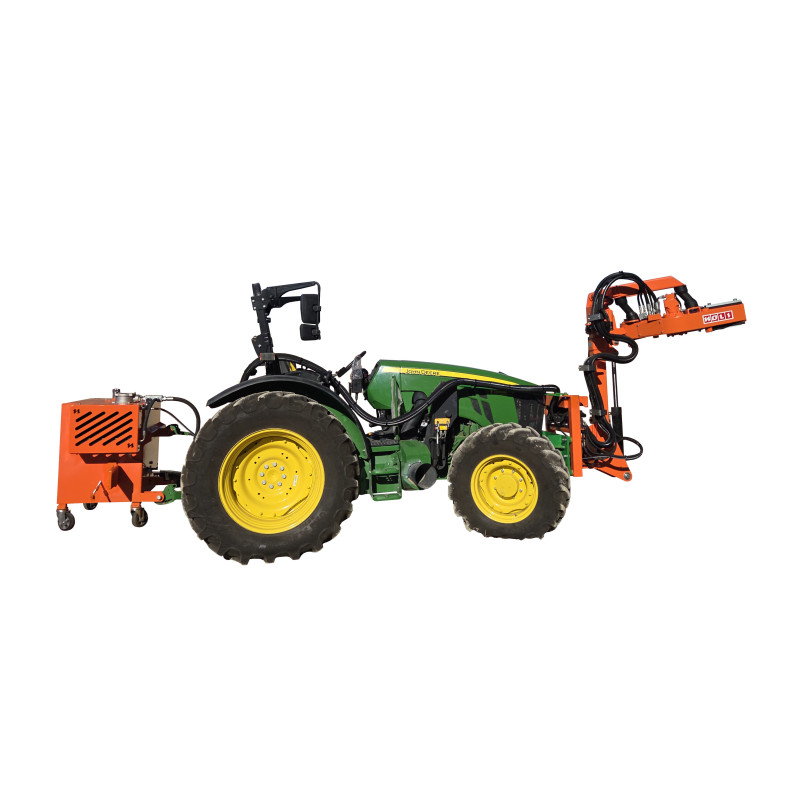

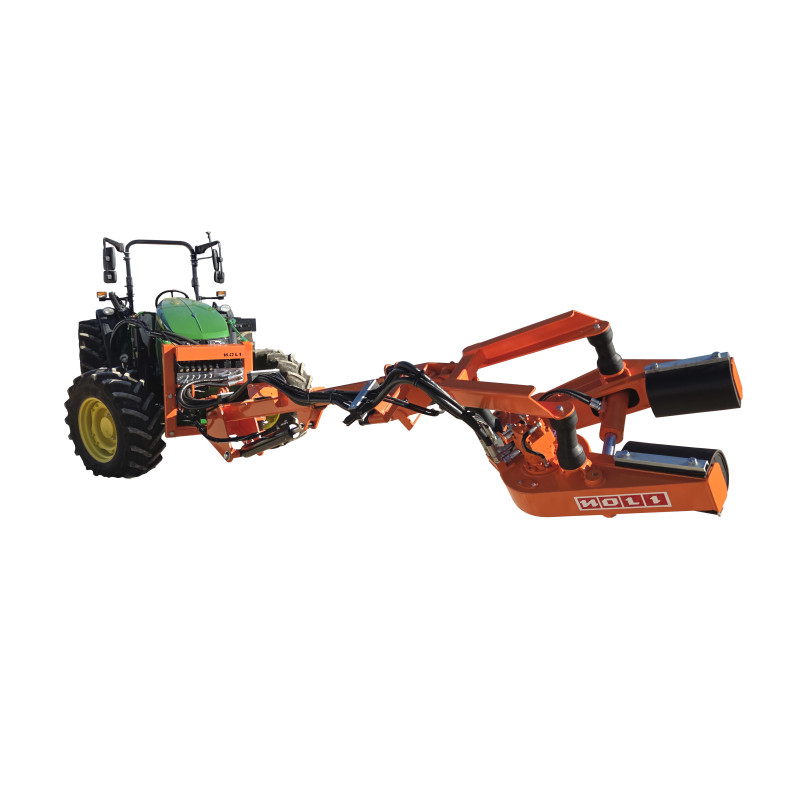

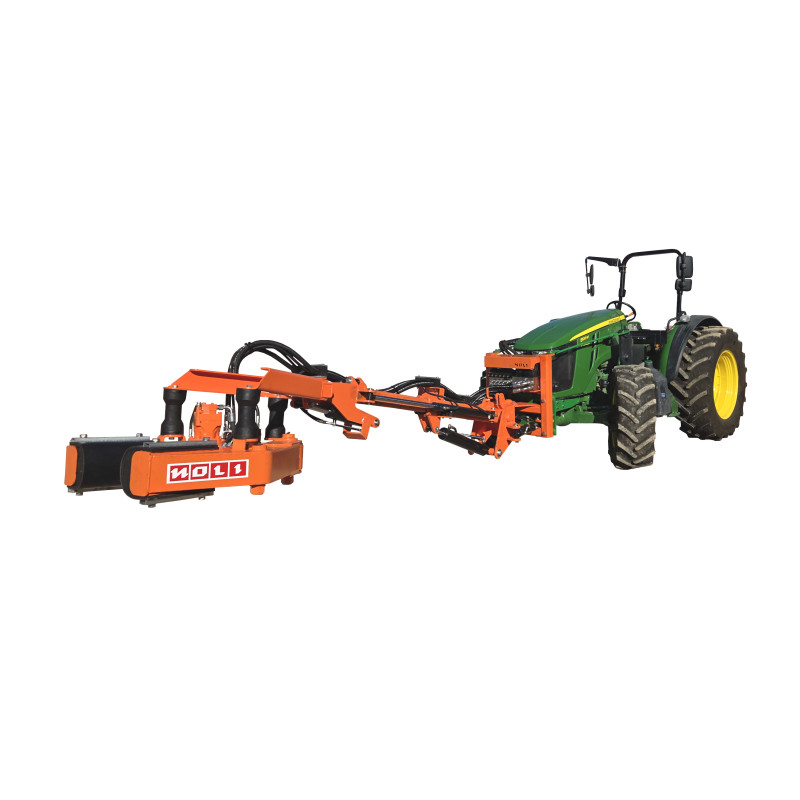

Set Multidirectional vibrator Model VBFHCA for thick trunk up to 350 mm.

Easy attachment to the tractor. Instantaneous start and stop vibration.

In automatic mode it is able to detect (thanks to a drive cable and a set of sensors) the tree and placed in the correct position. It will be adapted to the shape and angle of the tree trunk close the clamp and start vibrating action, all this completely automatically.

You can also work in manual mode.

Extension bracket arm clamp and turn to both sides.

Minimum required power 80 hp.

Technical data

Automatic

Inverter Rotation

Olivo Maximun Diameter

Approximate Weight without Deposit

Approximate Weight with Deposit

Minimum Power CV

Yes

Yes

350 mm.

1.245 Kgrs.

1.642 Kgrs.

80 - 90

The measures and weights indicated in the table are approximate and depend on the options configuration of the machine.

Product allocation

Multidirectional Vibrator Model VBFHCA with Oil tank
